ASUS ROG STRIX B850-A GAMING WIFI AMD AM5 ATX Motherboard
The documented AM5 platform and DDR5 layout make this board a candidate for a new compatible desktop. However, the lower expansion slot disables M.2_3, and the reviewed rear I/O lacks USB4. Buyers should map their drives and required peripherals first; the white PCB is a preference that cannot resolve those functional constraints.
Updated 2026-10-08
We may earn a commission from qualifying purchases.
Prices and sellers
No price information yet
Conditions and limitations
M.2_3 depends on the lower expansion slot
- Capability
- Four physical M.2 slots are documented.
- Limitations
- Operating PCIEX16(G4) disables M.2_3.
- Requirements
- Leave PCIEX16(G4) inactive when M.2_3 is needed.
Compatibility
CPU-family, memory-QVL, operating-system and audio-output conditions are documented as claims. No exhaustive device-by-device compatibility test is supplied.
Where sources differ
The historical manual states 192GB; the currently read US page states 256GB but native snapshot access is robots-denied. No current-capacity claim or unsupported firmware explanation is submitted.
Reported issues and fixes
Physical reviews and handling instructions were read. No confirmed defect and fix history is established; absent rear USB4 is treated as a design limitation.
Care and support
Socket-cap handling for RMA is documented. Warranty duration, spare availability and a promised support end date are not established.
Who it suits
Check the AM5 component and expansion plan
- Check before buying
- Check exact CPU and memory support.
- Map drives and expansion cards.
- Constraints
- Required peripherals must fit the documented interfaces.
- Needs
- An AM5 desktop with DDR5 memory.
- Reason
- Shortlist when the intended components fit the documented conditions.
- Tradeoffs
- Using PCIEX16(G4) disables M.2_3.
- Rear USB4 is absent.
- Assessment
- conditional
Areas not yet researched (1)
No conclusion is available for these areas. This does not mean the Product has no limitations or reported issues.
- Ownership costs
Measured performance
Vrm surface temperature max
41.2 °CFLIR One Pro thermal imaging after 30 minutes of Prime95 full load with BIOS default settings. · Highest of three measured VRM image temperatures; the review refers to an eight-core processor. Ambient temperature and repeated-sample count are not specified here. This is not a universal maximum for all CPUs and cases.
Source [5]Alternatives
| Alternative | Where this Product wins | Where it loses | Pick it if |
|---|---|---|---|
| ASUS TUF Gaming B760M-PLUS WiFi II | Both boards carry explicit safety or setup guidance, so the platform choice should be driven by CPU and memory compatibility rather than this shared requirement. [1] | Choose according to the processor platform and memory generation required by the planned build. |
| Specification | ASUS ROG STRIX B850-A GAMING WIFI AMD AM5 ATX Motherboard | ASUS TUF Gaming B760M-PLUS WiFi II LGA 1700 Motherboard |
|---|---|---|
| Setup Requirement | The guide instructs builders to secure the power supply and provide proper chassis airflow. US [1] | Disconnect power from the electrical outlet before relocating the system. |
Buyer questions
Before you buy
Can every M.2 slot remain available with an additional expansion card?
Not in every arrangement. The manual states that M.2_3 is disabled when the chipset PCIEX16(G4) slot operates. Check the intended drive and card map before buying. [4]
Compatibility
What memory generation does this board use?
The official manual identifies DDR5 and four DIMM slots. Supported memory configurations depend on the CPU and kit, so consult the current QVL. [4]
Setup
What setup detail should builders verify?
The quick-start guide instructs builders to secure the power supply and ensure proper airflow in the chassis. [1]
Limitations
Does it provide rear USB 4.0?
The independent review identifies the lack of rear USB 4.0 ports as a limitation. [6]

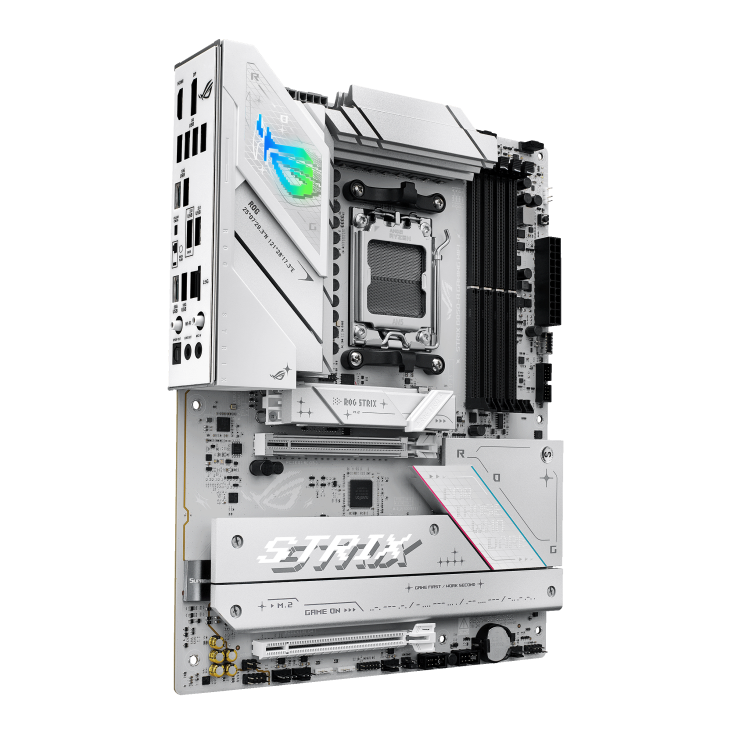

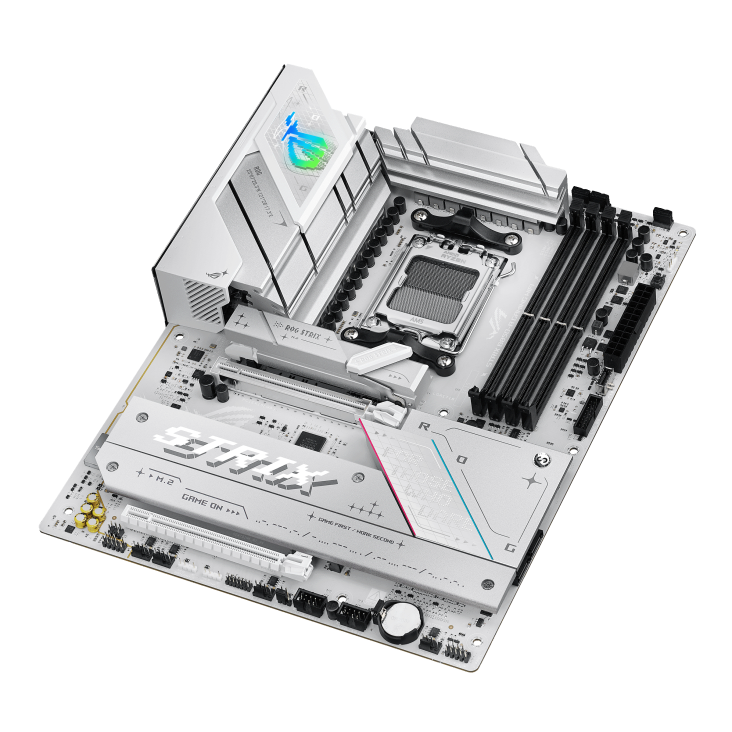

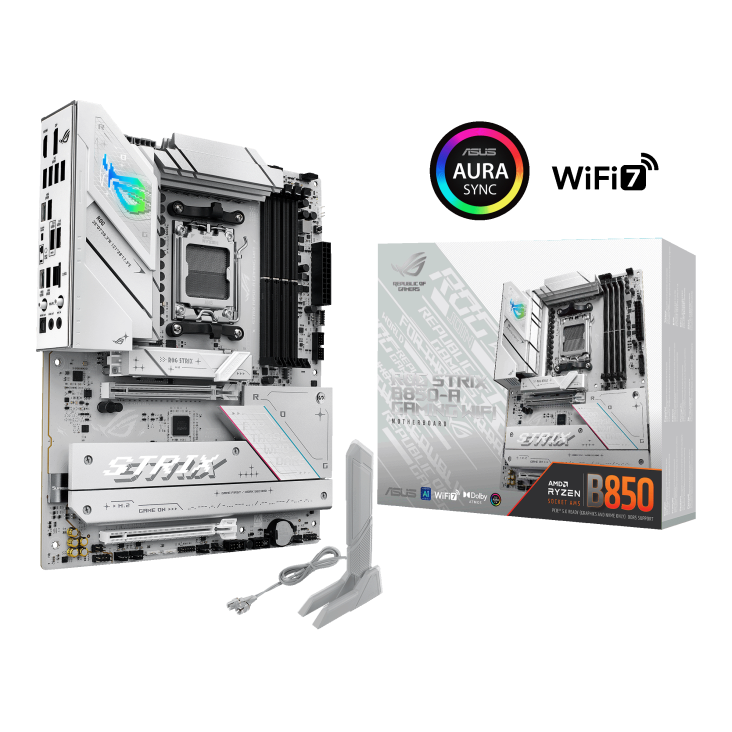

Product images
Facts and specifications
Manufacturer manual
| Specification | Value | Source |
|---|---|---|
| Compatibility | ALC4080 audio; 7.1 surround requires a chassis HD audio module, and rear LINE OUT does not support spatial audio. US; Memory type, speed and module count depend on CPU and memory configuration; consult the current QVL. US; Socket AM5 for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors; consult the exact CPU support list. US; Wi-Fi features depend on the operating system; the manual reports no Windows 10 driver and country-dependent 6GHz availability. US | [4] |
| Form Factor | ATX US | [4] |
| Interface | Four M.2 slots and two SATA 6Gb/s ports. US; Intel 2.5Gb Ethernet and 2x2 Wi-Fi 7 (802.11be), with 2.4/5/6GHz bands and 160MHz bandwidth. US; Rear BIOS FlashBack and Clear CMOS buttons are listed. US | [4] |
| Limitation | M.2_3 is disabled when the chipset PCIEX16(G4) slot operates. US | [4] |
| Memory Slots | 4 US | [4] |
| Memory Type | DDR5 US | [4] |

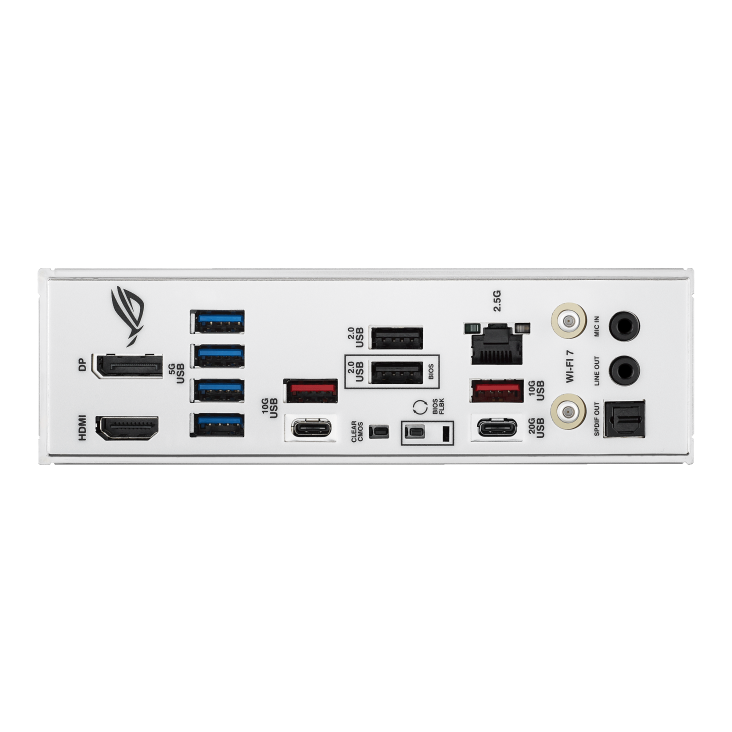

| Ports | Rear USB: ten ports, including one 20Gbps Type-C, three 10Gbps ports, four 5Gbps ports and two USB 2.0 ports. US | [4] |
| Setup Requirement | Keep the AM5 socket cap after installation; the manual requires it on the socket for RMA processing. US | [4] |
Stated by reviewers
| Specification | Value | Source |
|---|---|---|
| Materials | White PCB, described by ThinkComputers as all-white down to the PCB. | [3] |
Other facts
KnowSpec analysis
Match the component plan before choosing the appearance
The documented AM5 platform and DDR5 layout make this board a candidate for a new compatible desktop. However, the lower expansion slot disables M.2_3, and the reviewed rear I/O lacks USB4. Buyers should map their drives and required peripherals first; the white PCB is a preference that cannot resolve those functional constraints.
Method: Official documentation and independent physical inspection synthesis; no comparative performance ranking.Visible information gaps
Missing information is shown rather than guessed.
- Topic:Power Delivery And Thermalsnot found
- Topic:Upgrade Pathnot found
- Max Memorynot public
Products in this content
-
ASUS Prime B760M-K D4 Intel B760 (LGA 1700)(13th and 12th Gen) mATX Motherboard, PCIe 4.0, Two PCIe 4.0 M.2 Slots, DDR4,
The PRIME B760M-K D4 combines a compact micro-ATX layout, two DDR4 DIMM slots and two PCIe 4.0 x4 M.2 positions
-
ASRock B650M Pro RS WiFi
This microATX AMD B650 motherboard is aimed at compact AM5 builds using DDR5, especially Ryzen 5 or Ryzen 7 systems. It provides three M.2 slots, PCIe 4.0 x16 graphics connectivity, and 2.5 Gbit/s Ethernet. Buyers still need to check case f
-
ASUS TUF Gaming B760M-PLUS WiFi II LGA 1700 Motherboard
Four DIMM slots are useful only after the required memory generation is checked. This exact board requires DDR5 and explicitly excludes DDR4 modules; buyers moving an older kit must resolve t
-
ASRock Z890 Taichi Lite ATX Motherboard, LGA1851
This motherboard is built around expansion headroom: six M.2 slots, a maximum-memory claim of 274877906944 bytes, and 5 Gbit/s Ethernet. Those specifications make it relevant to storage-heavy and memory-heavy builds with multi-gig networkin
-
GIGABYTE B850 AORUS Elite WIFI7
The GIGABYTE B850 AORUS ELITE WIFI7 is an ATX AM5 motherboard with PCIe 5.0 x16 support, three M.2 slots, 2.5 Gbps Ethernet and up to 256 GB of memory. Its broad Ryzen 9000, 8000 and 7000 series support and Q-Flash Plus make it approachable
-
GIGABYTE B860M GAMING X WIFI6E Micro-ATX Motherboard, LGA1851
The evidence establishes three motherboard attributes: a Micro-ATX form factor, 15 power stages, and 2.5 Gbit/s Ethernet. That combination suggests a compact board with multi-gig networking and a documented power-stage count. The record doe
