TP-Link Archer AX6000 AX6000 Dual-Band Wi-Fi 6 Router
Consider the Archer AX6000 if you want a Wi-Fi 6 router with many wired connections and configurable household controls, provided you can verify the supplied revision and its current support. The historical EU/US V1.0 datasheet documents eight gigabit LAN ports, a multi-gigabit WAN port and HomeCare features; TweakTown also found a substantial feature set in its reviewed unit. The key buying caution is revision-specific: TP-Link lists US V1.0 with EOS on 2024-04-23, while this ASIN does not establish the delivered hardware or a security-support end date. That makes a current support check part of the purchase decision.
Updated 2026-10-04
We may earn a commission from qualifying purchases.
Prices and sellers
No price information yet
Conditions and limitations
Wireless benefits depend on clients
- Capability
- Wi-Fi 6 with legacy-client compatibility
- Limitations
- Published rates are physical link rates, not measured application throughput.
- The ASIN does not establish the delivered hardware revision.
- Requirements
- Clients must support the optional wireless and security features being used.
WAN and LAN have different ceilings
- Capability
- Multi-gigabit WAN input with eight gigabit LAN connections
- Limitations
- One individual LAN link is gigabit.
- Link aggregation is a separate configuration and is not a multi-gigabit port.
- Requirements
- The upstream service and equipment must support the chosen link speed.
Compatibility
Existing Wi-Fi clients
- Connection
- Wireless connection using a mutually supported standard
- Functions
- Network connectivity
- Notes
- Legacy connectivity does not enable Wi-Fi 6-only features.
- Protocol
- IEEE 802.11
- Result
- partial
- Source device
- 802.11a/b/g/n/ac Wi-Fi client
- Target device
- Archer AX6000 V1.0
Shared USB storage
- Connection
- Storage connects to either USB port for network sharing
- Functions
- File sharing
- Media server
- Notes
- Specific drive and filesystem compatibility were not established in this evidence.
- Protocol
- USB 3.0 / Samba / FTP
- Result
- partial
- Source device
- USB storage device
- Target device
- Archer AX6000 V1.0
Where sources differ
The historical datasheet states a HomeCare term, but current terms could not be independently verified.
Care and support
US V1.0 appears on the EOS list
- Details
- The manufacturer lifecycle table records EOS 2024-04-23 for Archer AX6000 US V1.0. It does not establish the security-update end date or identify the revision supplied by this ASIN.
Who it suits
Several direct wired connections
- Check before buying
- Confirm the supplied hardware revision.
- Count the LAN connections needed.
- Verify current firmware support.
- Constraints
- The recommendation is conditional on receiving the documented hardware and verifying current support.
- Needs
- Connect several wired devices directly while retaining wireless access.
- Reason
- Historical V1.0 documentation supports a wired-heavy household use case without establishing the delivered revision.
- Tradeoffs
- Many documented LAN connections, but each LAN link remains gigabit.
- Assessment
- conditional
One multi-gigabit LAN connection
- Check before buying
- Distinguish WAN speed from the speed of the intended LAN socket.
- Constraints
- This decision applies to the documented V1.0 hardware.
- Needs
- Connect one wired endpoint through a multi-gigabit LAN socket.
- Reason
- The documented LAN-port speed does not meet this single-port requirement.
- Tradeoffs
- The multi-gigabit WAN input does not change the individual LAN links.
- Aggregation is a separate configuration, not a multi-gigabit socket.
- Assessment
- unsuitable
Mixed legacy and Wi-Fi 6 clients
- Check before buying
- Check client support for the wireless and security features you intend to enable.
- Confirm that the supplied router matches the documented revision.
- Constraints
- The feature documentation is historical EU/US V1.0.
- Individual client interoperability is not established.
- Needs
- Retain legacy wireless clients while using supported features on newer clients.
- Reason
- The documented standards fit a mixed-client plan, provided feature expectations match the clients.
- Tradeoffs
- Basic legacy compatibility is documented; optional feature benefits depend on client support.
- Assessment
- conditional
Household controls and management
- Check before buying
- Verify current HomeCare terms and available controls.
- Confirm the intended app or web management route.
- Constraints
- Current HomeCare terms are not established by the historical V1.0 datasheet.
- Needs
- Manage internet access time and content through documented router controls.
- Reason
- The historical feature set addresses household control needs; continued availability must be checked for the actual unit.
- Tradeoffs
- The documented controls and app/web management routes are useful, but present feature availability needs verification.
- Assessment
- conditional
USB storage sharing
- Check before buying
- Verify the intended drive and filesystem.
- Confirm the delivered hardware revision.
- Constraints
- This is a documented historical V1.0 capability.
- Specific drive and filesystem compatibility are unverified.
- Needs
- Share files or media from a USB storage device.
- Reason
- Samba, FTP and media sharing support the use case, subject to checking the intended drive and hardware.
- Tradeoffs
- USB ports and sharing services are documented; the exact storage-device outcome is not.
- Assessment
- conditional
The documented VPN protocols
- Check before buying
- Verify the required configuration on the delivered revision.
- Check current support and firmware availability.
- Constraints
- Protocol support is documented for historical V1.0, not a verified present firmware configuration.
- Needs
- Use OpenVPN or PPTP access on the router.
- Reason
- The documentation identifies the protocols, but the actual firmware configuration and support status remain purchase checks.
- Tradeoffs
- A listed protocol does not establish measured VPN performance.
- Assessment
- conditional
An established security-support horizon
- Check before buying
- Identify the actual hardware revision.
- Obtain a current revision-specific security-support answer.
- Constraints
- The ASIN does not identify the supplied hardware revision.
- US V1.0 EOS does not establish a security-support end date.
- Needs
- Know the remaining security-update period before installation.
- Reason
- The evidence cannot establish the support horizon for the delivered unit.
- Tradeoffs
- Historical stability feedback is favorable but cannot settle current support.
- Assessment
- unknown
Areas not yet researched (2)
No conclusion is available for these areas. This does not mean the Product has no limitations or reported issues.
- Reported issues and fixes
- Ownership costs
Specifications
Wireless throughput wider channel
925000000 bit/sHistorical TweakTown wireless throughput test, wider-channel configuration. · Result from the reviewed test unit. It is not a universal throughput promise; applicability to the supplied hardware and current firmware is unverified.
Source [2]Wireless throughput narrower channel
753000000 bit/sHistorical TweakTown wireless throughput test, narrower-channel configuration. · Result from the reviewed test unit. Do not infer performance for a different client or a sustained workload.
Source [2]Range test throughput
614000000 bit/sHistorical TweakTown range-test throughput observation. · One reported range-test point, not a coverage-area specification or a whole-home guarantee.
Source [2]Compatibility
| Use | Verdict | Evidence |
|---|---|---|
| Retaining 802.11a/b/g/n/ac Wi-Fi clients | maybe | Backward compatibility is documented for historical EU/US V1.0. Optional MU-MIMO, 1024-QAM and WPA3 features require matching client support; named-client testing and the delivered revision are not established. [1], [3] |
| Connecting compatible multi-gigabit upstream equipment | maybe | The historical EU/US V1.0 datasheet documents a 2.5 Gb/s WAN connection. The upstream equipment and service must support the chosen link speed; this does not change the gigabit LAN links. Verify the supplied revision. [1], [3] |
| A multi-gigabit connection through one V1.0 LAN socket | no | The historical EU/US V1.0 documentation specifies gigabit LAN links. Its separate multi-gigabit WAN connection and link-aggregation feature do not provide an individual multi-gigabit LAN socket. [1] |
| LAN link aggregation with a compatible peer | maybe | LAN link aggregation is documented for historical EU/US V1.0, with peer configuration to be checked. Do not assume a particular peer setup or transfer result from the feature listing. [1] |
| USB file and media sharing | maybe | Historical EU/US V1.0 documentation lists USB-A and USB-C storage connections and Samba, FTP and media-server sharing. Specific drive and filesystem compatibility are unverified. [1] |
| OpenVPN or PPTP access | maybe | These VPN protocols are documented in historical EU/US V1.0 materials. Check the actual firmware configuration and support status; this evidence does not establish VPN throughput. [1], [3] |
Reviewer consensus
Single-source notes
- App & parental controls: Agreed · 1/1 · [1]
- Buyer fit: Agreed · 1/1 · [2]
- Ethernet wan lan: Agreed · 1/1 · [1]
- Firmware security: Agreed · 1/1 · [1]
- Limitations: Weak point · 1/1 · [3]
- Measured performance: Agreed · 1/1 · [2]
- Multi client capacity: Agreed · 1/1 · [1]
- Range and coverage: Agreed · 1/1 · [2]
- Real world throughput: Agreed · 1/1 · [2]
- Thermals and reliability: Agreed · 1/1 · [2]
- Vpn and advanced routing: Agreed · 1/1 · [1]
- Wireless standards and bands: Agreed · 1/1 · [1]
The review
TP-Link Archer AX6000: wired flexibility with revision and support checks
Start with the hardware revision
The Archer AX6000 is a conditional candidate for a household that values wired connections, Wi-Fi 6 and configurable controls. The specification discussion here refers to the historical EU/US V1.0 datasheet. The ASIN does not establish which hardware revision will be supplied, so treat a revision check as part of evaluating the documented features. [1], [3]
TP-Link records EOS on 2024-04-23 specifically for Archer AX6000 US V1.0. This is not an established security-support end date. Before choosing it for a new installation, verify the actual hardware revision and current firmware support rather than extending that lifecycle entry to every Archer AX6000. [3]
Separate wireless specifications from measured speeds
The historical V1.0 datasheet specifies dual-band Wi-Fi 6, with 2.4 GHz and 5 GHz operation. Its stated physical link rates are 1148 Mbps and 4804 Mbps respectively. These specification values describe wireless links; they are not measured application throughput for a purchased client. [1]
The same V1.0 documentation lists OFDMA and MU-MIMO and backward compatibility with 802.11a/b/g/n/ac clients. Keeping existing devices is therefore a documented use case, but MU-MIMO, 1024-QAM and WPA3 benefits require corresponding client support. A supported feature list does not establish a measured capacity for a busy household. [1]
TweakTown measured 925 Mbps in its wider-channel wireless test and 753 Mbps in its narrower-channel test. Its range testing also recorded 614 Mbps. Each result belongs to that historical test configuration and reviewed unit; none should be presented as a universal speed or guaranteed coverage for another home. [2]
TweakTown described the reviewed firmware stability favorably. The accepted observation does not establish the test duration or reliability of current firmware, so it cannot settle a sustained-load or long-term reliability requirement. [2]
Check the installation space
The historical V1.0 dimensions are 261.2 mm wide, 261.2 mm deep and 60.2 mm high, with eight antennas documented. Check the intended placement against those dimensions rather than assuming it fits a compact shelf. The documented processor is quad-core with two co-processors; that hardware description is not a measured workload result. [1]
TweakTown found the plastics and antenna construction solid in its reviewed unit. That observation supports a favorable impression of that sample, but does not establish long-term durability or replace a current support check. [2], [3]
Decide whether you need ports or a faster individual LAN link

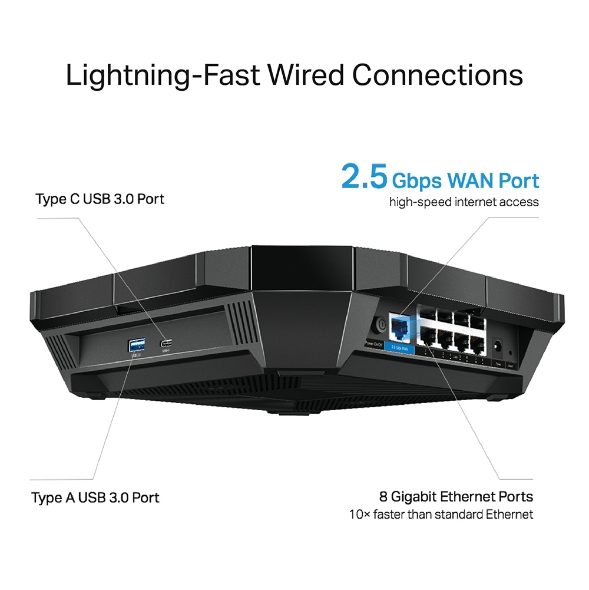

For V1.0, the documented Ethernet layout is one 2.5 Gb/s WAN connection and eight 1 Gb/s LAN connections. This is useful when the requirement is to attach several wired devices directly. If the requirement is a multi-gigabit connection through one LAN socket, the documented gigabit LAN links are the limiting specification. [1]
The historical V1.0 datasheet also documents LAN link aggregation. Check the intended peer and its configuration before depending on it. Aggregation is a separate configuration, not a replacement description for an individual multi-gigabit port, and the evidence supplies no application-throughput result for it. [1]
The documented V1.0 storage connections are one USB-A 3.0 port and one USB-C 3.0 port. Samba storage, FTP and media-server sharing are listed, making shared USB storage a documented use case. Confirm the intended drive and filesystem separately because this evidence does not establish specific-drive compatibility. [1]
Match setup and controls to the household
Historical V1.0 materials describe configuration through the web interface or Tether app, including Bluetooth onboarding. They also document parental control over internet access time and content, plus HomeCare QoS and antivirus features. These are useful features to verify on the actual unit if household management is a main reason for buying. [1]
The 2021 V1.0 datasheet describes a basic HomeCare package included for three years from activation. That historical statement does not establish current terms. Confirm present feature availability before relying on HomeCare as a continuing part of the household setup. [1]
The historical V1.0 security list includes WPA/WPA2-Personal, WPA2/WPA3-Personal and WPA/WPA2-Enterprise. Corresponding client support matters for WPA3. OpenVPN and PPTP access are documented too, but this evidence does not establish current configuration details or measured VPN performance. [1]
TweakTown found a substantial feature set in its reviewed firmware, including HomeCare and advanced controls. Treat that as historical corroboration of the feature-oriented appeal, while checking the supplied hardware and firmware for the particular controls you need. [2], [3]
Buyer questions
Before you buy
What speed did independent testing find?
TweakTown recorded 925 Mbps and 753 Mbps in separate historical wireless tests, plus 614 Mbps at a range-test point. These describe its test unit and configurations, not guaranteed performance for your devices or home. The separate favorable stability observation does not establish current-firmware reliability or a sustained-load test duration. [2]
Compatibility
Can I keep older Wi-Fi devices?
The historical V1.0 datasheet documents backward compatibility with 802.11a/b/g/n/ac clients. Optional features such as MU-MIMO, 1024-QAM and WPA3 need corresponding client support. Legacy connectivity therefore does not establish access to every newer feature, and the supplied hardware revision should be checked. [1], [3]
Can it share a USB drive across the network?
The historical V1.0 datasheet documents USB-A 3.0 and USB-C 3.0 storage connections with Samba, FTP and media-server sharing. That establishes the sharing functions, but not compatibility with a particular drive or filesystem. Check the intended storage device and supplied revision before making this a required use case. [1], [3]
Everyday use
Are the parental controls and HomeCare terms current?
Historical V1.0 materials document internet time and content controls, HomeCare QoS and antivirus. The 2021 datasheet describes a basic HomeCare package included for three years from activation, but current policy is not established. Verify present availability for the exact unit before depending on these features. [1]
Limitations
Will the WAN connection give one wired device multi-gigabit speeds?
The historical V1.0 hardware has a 2.5 Gb/s WAN port, but each of its eight LAN connections is 1 Gb/s. A single LAN socket therefore does not provide a multi-gigabit link. Link aggregation is documented separately and requires checking the peer configuration; it does not change the individual LAN-port specification. [1]
Care and maintenance
Does the EOS listing mean security updates have ended?
The verified entry lists Archer AX6000 US V1.0 with EOS on 2024-04-23. It does not establish a security-support end date and does not identify the hardware supplied under this ASIN. Verify the actual revision and its current support status; the EOS entry alone cannot answer the security-update question. [3]

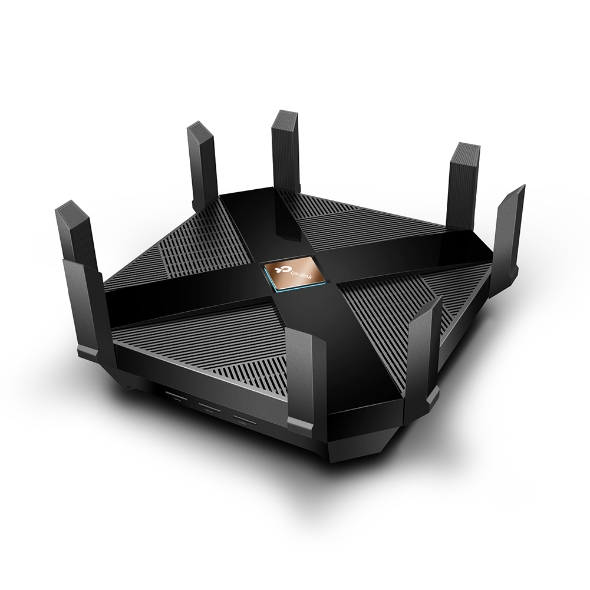

Product images
Facts and specifications
Manufacturer datasheet
| Specification | Value | Source |
|---|---|---|
| Antenna Count | 8 | [1] |
| Wi-Fi Bands | 2 | [1] |
| Compatibility | Backward-compatible with 802.11a/b/g/n/ac clients; MU-MIMO, 1024-QAM and WPA3 need corresponding client support. | [1] |
| Depth | 261.2 mm | [1] |
| Height | 60.2 mm | [1] |
| Width | 261.2 mm | [1] |
| Ethernet Ports | 9 | [1] |
| Ethernet Speed | 1 Gbit/s | [1] |
| Frequency | 2.4 GHz; 5 GHz | [1] |
| Interface | LAN link aggregation documented; verify peer configuration | [1] |
| Maximum Link Rate | 1148000000 bit/s; 4804000000 bit/s | [1] |
| Ports | One USB-A 3.0 and one USB-C 3.0 storage port | [1] |
| Processor | 1.8 GHz 64-bit quad-core processor with two co-processors | [1] |
| Security Protocol | WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise | [1] |
| Setup Requirement | Configure through the web interface or Tether app; manufacturer materials describe Bluetooth onboarding. | [1] |
| Software | OFDMA and MU-MIMO documented for V1.0; OpenVPN and PPTP VPN access documented for V1.0; Parental control of internet access time and content; HomeCare QoS and antivirus documented in V1.0 materials; The 2021 V1.0 datasheet documents a basic HomeCare package included for three years from activation; this does not establish current terms.; USB Samba storage, FTP and media server sharing documented | [1] |
| WAN Speed | 2.5 Gbit/s | [1] |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) | [1] |
Measured by a lab
| Specification | Value | Source |
|---|---|---|
| Data Rate | 614 Mbit/s; 753 Mbit/s; 925 Mbit/s | [2] |
Other facts
| Specification | Value | Source |
|---|---|---|
| Buyer Fit | TweakTown found the reviewed firmware feature set substantial, including HomeCare and advanced controls. | [2] |
| Risk | TP-Link lists Archer AX6000 US hardware V1.0 with an EOS date of 2024-04-23. This entry does not identify this ASIN’s hardware or establish its security-support end date. US | [3] |
KnowSpec analysis
A conditional fit for a wired-heavy Wi-Fi household
Consider the Archer AX6000 if you want a Wi-Fi 6 router with many wired connections and configurable household controls, provided you can verify the supplied revision and its current support. The historical EU/US V1.0 datasheet documents eight gigabit LAN ports, a multi-gigabit WAN port and HomeCare features; TweakTown also found a substantial feature set in its reviewed unit. The key buying caution is revision-specific: TP-Link lists US V1.0 with EOS on 2024-04-23, while this ASIN does not establish the delivered hardware or a security-support end date. That makes a current support check part of the purchase decision.
Method: Buyer-fit synthesis of the accepted historical V1.0 documentation and attributed reviewer observations; delivered hardware and current firmware are not assumed.WAN headroom does not change each LAN link
For the documented V1.0 hardware, the 2.5 Gb/s WAN connection and eight 1 Gb/s LAN connections serve different needs. This layout can suit a household that wants to connect several wired devices directly. It does not supply a multi-gigabit connection through one LAN socket. LAN link aggregation is documented, but it is a separate setup that requires checking the peer configuration.
Method: Buyer-fit synthesis of the accepted historical V1.0 documentation and attributed reviewer observations; delivered hardware and current firmware are not assumed.Use the review as a reference point
TweakTown recorded 925 Mbps and 753 Mbps in separate wireless tests and 614 Mbps at a range-test point. These are historical observations from its tested unit, not universal speeds or a whole-home coverage promise. Its favorable firmware-stability observation is useful context, but the evidence does not establish test duration or current-firmware reliability.
Method: Buyer-fit synthesis of the accepted historical V1.0 documentation and attributed reviewer observations; delivered hardware and current firmware are not assumed.Check the features your clients and household need
The historical V1.0 documentation covers legacy Wi-Fi clients, OFDMA and MU-MIMO, parental controls, and OpenVPN/PPTP access. Optional wireless and security features depend on matching client support. The historical HomeCare inclusion term does not establish current policy, so a household relying on those controls should verify present availability rather than assume the original documentation remains an entitlement.
Method: Buyer-fit synthesis of the accepted historical V1.0 documentation and attributed reviewer observations; delivered hardware and current firmware are not assumed.Visible information gaps
Missing information is shown rather than guessed.
- Warrantynot found
- Optionnot found
- Topic:Sustained Performancenot found
- Coverage Areanot found
- Topic:Mesh And Backhaulnot found
- Topic:Efficiencynot found
Products in this content
-
GL.iNet GL-MT300N-V2 Mango N300 Mini Travel Router
The Mango GL-MT300N-V2 suits travelers who value a pocket-size router, flexible uplinks and router-level VPN configuration more than broadband speed. Its single-band Wi-Fi and Fast Ethernet make it a conditio
-
GL.iNet GL-AR300M16 (Shadow) N300 Mini Travel Router
The GL-AR300M16 is a conditional choice for travellers who value a tiny, configurable network more than throughput. Its internal antennas and Micro-USB power connection keep the kit compact, while the single-
-
NETGEAR Nighthawk R6900P AC1900 Dual-Band WiFi Router
The R6900P is difficult to recommend as a new primary Internet router. NETGEAR marks it end-of-support and recommends retirement. Its remaining wired, wireless and local-storage functions can
-
NETGEAR Nighthawk AX12 RAX120 AX6000 Dual-Band WiFi 6 Router
Do not buy an unidentified RAX120 for a new security-dependent Internet connection on the strength of its AX6000 label. This ASIN maps to RAX120-100NAS but does not establish v1 or v2. NETGEA
-
TP-Link Archer AX21 AX1800 Dual-Band Wi-Fi 6 Router
The Archer AX21 is worth considering when replacing an old router with Wi-Fi 6, provided you do not need advanced parental controls or guaranteed coverage at a distance. Check the unit’s hardware revision bef
-
TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router
The Archer AX73 suits a home seeking capable Wi-Fi 6 and ordinary Gigabit wired connections, especially with compatible clients on its higher-frequency band. Its headline wireless class should
Sources and method
- Archer AX6000 (EU & US) V1.0 Datasheet, 2021TP-Link · retrieved 2026-10-04DatasheetPDF
- TP-Link Archer AX6000 Wireless Router ReviewTweakTown · retrieved 2026-10-04Lab review
- EOL List Home Networking V7.1: Archer AX6000 revision rowsTP-Link · retrieved 2026-10-04Manufacturer supportPDF
