TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router, Black
The Archer BE230 makes sense when you want dual-band Wi-Fi 7, a multi-gigabit internet connection and one matching wired client in a modest home. Its strongest practical distinction is the combination of a 2.5 Gbps WAN port and a 2.5 Gbps LAN port. Choose something else if access to 6 GHz is essential, or if you need several multi-gigabit LAN devices without additional networking hardware. Before buying, confirm the unit's hardware revision and its applicable firmware: this ASIN does not identify a revision, and a published security advisory concerns a specific hardware revision and firmware range.
Updated 2026-10-05
We may earn a commission from qualifying purchases.
Prices and sellers
No price information yet
Conditions and limitations
Wi-Fi 7 benefits require matching clients
- Capability
- Dual-band Wi-Fi 7 with MLO, 4K-QAM and Multi-RUs as documented
- Limitations
- No 6 GHz radio; the BE3600 aggregate class is not a measured single-device transfer rate
- The evidence does not establish simultaneous MLO aggregation for every client and firmware pair
- Requirements
- Client hardware, drivers and software must support each requested feature
- Check the installed regional firmware for feature availability
One multi-gigabit wired client path
- Capability
- A 2.5 Gbps WAN and one 2.5 Gbps LAN connection
- Limitations
- Only one LAN port is 2.5 Gbps; the other three are 1 Gbps
- Measured throughput depends on the complete path and workload
- Requirements
- Compatible ISP service and upstream equipment
- A 2.5 GbE client and suitable cable to exceed 1 Gbps on the wired client path
EasyMesh compatibility needs verification
- Capability
- Expansion with compatible EasyMesh equipment
- Limitations
- The manufacturer warns of firmware conflicts between vendors
- No retained evidence quantifies wireless backhaul or roaming for this exact ASIN
- Requirements
- Verify the exact peer model and both firmware versions before buying additional nodes
Compatibility
Tested Wi-Fi 7 connection with TBE550E
- Connection
- Iperf3 testing at 1 m and 10 m; one-floor test site with 20 cm brick walls
- Functions
- Local download and upload throughput
- Notes
- The test establishes working 5 GHz data transfers, not all Wi-Fi 7 features. Router firmware, exact hardware revision, channel and width were not supplied in the retained methodology.
- Protocol
- 802.11be on 5 GHz
- Result
- partial
- Source device
- PC with TP-Link TBE550E
- Target device
- TP-Link Archer BE230
Where sources differ
Different test methods and regions prevent direct numeric equivalence. Einfoldtech's BE350 test text and Unbox's BE320 performance text were excluded rather than silently reassigned to BE230.
Reported issues and fixes
Revision-specific authenticated command injection advisory
- Status
- confirmed
- Symptom
- CVE-2026-0630 describes command execution by an authenticated adjacent-network attacker with high privileges.
- Workaround
- Identify the actual hardware revision and obtain the applicable current firmware from TP-Link's official site for the purchase region. The cited range is historical advisory scope, not a guarantee about all later builds or other revisions.
Care and support
No verified security-support end date or US warranty term was established for this ASIN's unknown revision. An EU1.0 end-of-sale entry is not a US security-support deadline.
Ownership costs
The advanced HomeShield subscription requirement is documented, but current prices and a total ownership-cost model were not collected.
Who it suits
Choose the port layout for the devices you actually have
- Check before buying
- Upstream service and equipment
- Client Ethernet adapter and cable
- Number of local devices needing multi-gigabit connections
- Actual hardware revision and applicable firmware
- Constraints
- Only one LAN port supports 2.5 Gbps
- Needs
- Multi-gigabit upstream service and one matching wired client
- Reason
- The port arrangement and independent WAN measurement support this use when the whole connection path is compatible.
- Tradeoffs
- Several fast local devices would require additional networking hardware
- Line rates do not guarantee application throughput
- Assessment
- conditional
Reject this model if the missing radio band is required
- Check before buying
- Whether the extra band is a requirement
- Client radio and feature support
- Constraints
- The router only provides 2.4 GHz and 5 GHz radios
- Needs
- Access to 6 GHz for compatible clients
- Reason
- The documented radio configuration cannot meet an explicit 6 GHz requirement.
- Tradeoffs
- Wi-Fi 7 features remain available subject to client and firmware support
- They do not supply the missing radio band
- Assessment
- unsuitable
Identify the hardware before choosing firmware
- Check before buying
- Hardware-revision label
- Applicable current firmware on TP-Link's purchase-region support site
- Any stated support commitment for that exact unit
- Constraints
- The ASIN does not establish a hardware revision
- The cited CVE concerns a specific revision and firmware range
- Needs
- A maintained router with firmware appropriate to its actual hardware
- Reason
- The published CNA evidence makes revision-aware maintenance an important purchase and setup check.
- Tradeoffs
- The historical affected range is not a blanket statement about every unit
- No verified US security-support end date was established
- Assessment
- conditional
Measured performance
Wifi 5ghz download near
133.75 MB/sPurePC iperf3, ten connections per client · 802.11be · TP-Link TBE550E client on Windows 11, 5 GHz, 1 m in the router room. Exact router revision, firmware, channel and width not supplied. Review sample is not bound to this US ASIN revision.
Source [6]Wifi 5ghz upload near
170.42 MB/sPurePC iperf3, ten connections per client · 802.11be · Same TBE550E/Windows 11 setup at 1 m. Unknown router revision and firmware; channel and width not supplied.
Source [6]Wifi 5ghz download far
91.67 MB/sPurePC iperf3, ten connections per client · 802.11be · TBE550E/Windows 11 client, 5 GHz, 10 m across 20 cm brick walls on one floor. Router revision, firmware, channel and width not supplied.
Source [6]Wifi 5ghz upload far
64.04 MB/sPurePC iperf3, ten connections per client · 802.11be · Same TBE550E/Windows 11 setup at 10 m across brick walls. Unknown router revision and firmware; channel and width not supplied.
Source [6]Usb cifs download
184.71 MB/sPurePC file transfer from USB storage using SMB/CIFS · External storage attached to the router. Drive model, filesystem, router firmware and revision not supplied in the retained test description.
Source [5]Usb cifs upload
58.8 MB/sPurePC file transfer to USB storage using SMB/CIFS · Same test context as USB download. Drive model, filesystem, router firmware and revision not supplied.
Source [5]Wan download
301.5 MB/sPurePC WAN download using iperf3 · Routed WAN transfer result from the independent review; exact router revision and firmware not stated. Not an ISP speed promise.
Source [5]Power during network activity
7.1 WPurePC power measurement during increased network activity · Workload details and duration not stated; not an annual energy estimate or a sustained thermal test.
Manufacturer specification, not a measurement.
Source [5]Reviewer consensus
Consensus rows require at least two distinct sources for the topic.
| Topic | Positive | Negative | Mixed | Reading | Evidence |
|---|---|---|---|---|---|
| Ethernet wan lan | 3 | 0 | 0 | Agreed · 3/3 | [2], [5], [3] |
| Measured performance | 2 | 0 | 0 | Agreed · 2/2 | [2], [7] |
| Vpn and advanced routing | 2 | 0 | 0 | Agreed · 2/2 | [2], [3] |
Single-source notes
- App & parental controls: Weak point · 1/1 · [3]
- Buyer fit: Agreed · 1/1 · [10]
- Efficiency: Agreed · 1/1 · [5]
- Limitations: Weak point · 1/1 · [3]
- Mesh and backhaul: Agreed · 1/1 · [3]
- Range and coverage: Agreed · 1/1 · [6]
- Real world throughput: Agreed · 1/1 · [6]
- Thermals and reliability: Agreed · 1/1 · [10]
- Wireless standards and bands: Agreed · 1/1 · [3]
The review
TP-Link Archer BE230: multi-gigabit connections with dual-band Wi-Fi 7 limits
What you are actually buying
This is the Archer BE230 associated with ASIN B0DC99N2T8. The BE3600 class combines advertised physical link rates of 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz. These are radio specifications, not a promise that one download will run at their combined rate. There is no 6 GHz radio. [1], [3]

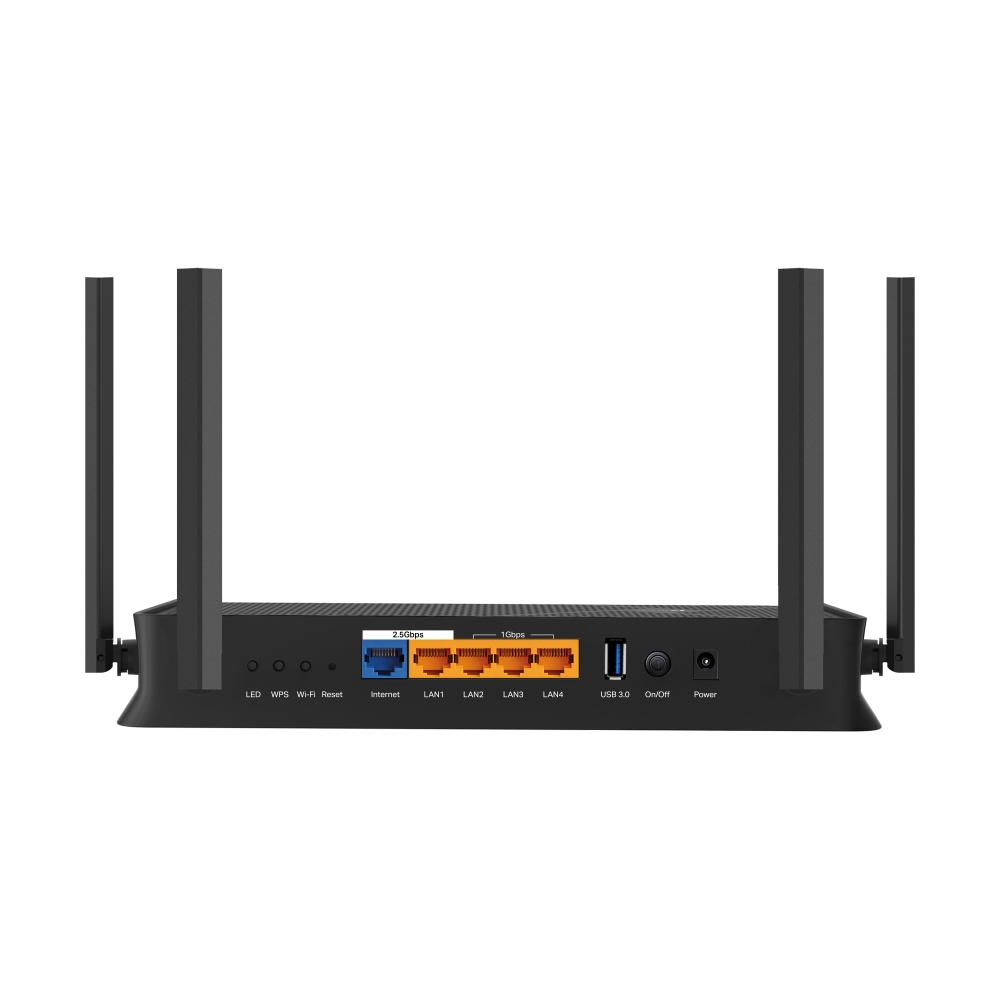

The wired layout is more concrete: one 2.5 Gbps WAN port, one 2.5 Gbps LAN port and three 1 Gbps LAN ports, plus USB 3.0 for storage. That suits a fast upstream connection and one matching wired client. It does not provide several multi-gigabit LAN connections by itself. [3]
What the measurements establish
PurePC's 5 GHz Wi-Fi 7 results, converted from its original MB/s figures to megabits per second, were 1070 Mbps download and 1363.36 Mbps upload at 1 m, falling to 733.36 Mbps and 512.32 Mbps at 10 m. Its client used a TP-Link TBE550E on Windows 11; iperf3 ran ten connections per client. The one-floor layout included 20 cm brick walls. Exact router revision, firmware and channel width were not supplied, so treat this as a tested configuration rather than a speed forecast for this US listing. [3], [7], [6]
TP-Link's own EU 1.0 laboratory guide reports 2197 Mbps download and 2246 Mbps upload on 5 GHz using EHT160, an Intel BE200 client at 1–2 m and 40 streams for 60 seconds. These manufacturer results used different conditions from PurePC's test. They neither identify the hardware shipped under this ASIN nor prove the same throughput for a different client or firmware. [3], [2]
PurePC also measured 7.1 W during increased network activity and reported no stability problems during its review. The duration was unstated. Sustained heavy-load testing, comprehensive multi-client behavior and long-term reliability remain evidence gaps. [7], [5], [10]
Wired transfers, storage and VPN use
Converted from PurePC's original MB/s figures, its WAN download with iperf3 corresponds to 2412 Mbps. Its USB/CIFS storage results correspond to 1477.68 Mbps for download and 470.4 Mbps for upload. That read/write difference matters for backup planning. The measurement entries preserve the review's original byte-rate units. The retained description does not identify the storage drive or filesystem, so the results are not a general NAS-performance guarantee. [3], [5]
The datasheet lists OpenVPN, PPTP, L2TP and WireGuard client/server support. For server-to-client transfers, TP-Link's EU 1.0 VPN-server chart reports 191 Mbps with OpenVPN and 742 Mbps with WireGuard. Dynamic IP is stated, but router firmware, remote peer and detailed cryptographic settings are missing. These vendor observations cannot promise encrypted throughput on the unidentified US revision. [3], [2]
Setup, mesh expansion and paid services
Local web management and the Android/iOS Tether app are documented, with router and access-point modes. Unbox's Philippine hands-on review found the modem-and-app setup straightforward. MLO and other advanced wireless features still depend on compatible clients and firmware; the Wi-Fi 7 label alone does not establish that every client can use every feature. [3], [4]
EasyMesh can extend the network, but check the exact peer model and firmware before buying nodes. TP-Link warns that cross-vendor firmware conflicts can prevent connections. HomeShield includes basic features, while advanced features require a paid subscription. Neither the existence of those services nor WPA3 support is a guarantee that an unmaintained router is secure. [3], [9]
Revision and security checks before purchase
TPLink's CNA record for CVE-2026-0630, retained in CISA's Vulnrichment repository, names Archer BE230 v1.2 with firmware earlier than 1.2.4 Build 20251218 rel.70420. It describes an authenticated adjacent-network command-injection issue; the CNA's CVSS v4 vector requires high privileges. The listing's hardware revision is unresolved, so this research does not declare the purchased unit affected, fixed or universally safe. Identify the actual revision and use TP-Link's applicable firmware for the purchase region. [1], [9]
The best-supported fit is a modest home that benefits from the wired port layout and documented wireless transfer capability. If the missing radio band is a requirement, this model does not fit. If guaranteed whole-home coverage, several multi-gigabit LAN clients, predictable VPN throughput or a confirmed support lifetime drives the decision, resolve those requirements before buying. No verified US security-support end date was established for this ASIN. [3], [6], [10], [9], [2]
Buyer questions
Before you buy
Does Wi-Fi 7 mean this router has 6 GHz?
No. The Archer BE230 has 2.4 GHz and 5 GHz radios only. Its Wi-Fi 7 features require matching client support, and compatible client hardware cannot add a missing radio band. [3]
Compatibility
Can I connect a multi-gigabit internet service and a fast wired PC?
Yes, conditionally. There is one 2.5 Gbps WAN port and one 2.5 Gbps LAN port. Your service, upstream equipment, PC adapter and cable must support the intended connection. The other three LAN ports are 1 Gbps, so plan extra networking hardware if several local devices need faster wired links. [3]
Will any mesh extender work with it?
Do not assume that. EasyMesh support is documented, but the peer must support the required mesh function and its firmware must interoperate. TP-Link warns about cross-vendor firmware conflicts. This research does not verify a particular satellite, roaming path or backhaul speed. [3]
Everyday use
Do parental controls and security features require a subscription?
HomeShield has both basic and advanced features. The advanced features require a paid subscription, so check the current feature split before depending on a specific parental-control or protection function. No subscription amount or total ownership-cost estimate is established here. [3]
Limitations
Can the USB port replace a dedicated storage appliance?
It provides external-storage sharing, but decide from the workload. Converted from PurePC's original MB/s figures, its USB/CIFS test results correspond to 1477.68 Mbps downloading from storage and 470.4 Mbps uploading to it. Those results came from one review setup with incomplete drive and filesystem details. Frequent writes and backups should be tested with the actual storage device. [5], [3]
Care and maintenance
What should I check about firmware and security?
Read the actual hardware-revision label and use the matching official firmware for the purchase region. The retained CNA record concerns BE230 v1.2 before 1.2.4 Build 20251218 rel.70420; it does not establish the status of every BE230. This ASIN's revision and a verified US security-support deadline remain unresolved. [9]
Product images
Facts and specifications
Manufacturer datasheet
| Specification | Value | Source |
|---|---|---|
| Antenna Count | 4 | [3] |
| Wi-Fi Bands | 2 | [3] |
| Compatibility | MLO, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO require compatible clients; firmware upgrades may be required for feature availability | [3] |
| Dimensions.Width | 272.7 mm | [3] |
| Ethernet Ports | 5 | [3] |
| Ethernet Speed | 2.5 Gbps | [3] |
| Maximum Link Rate | 2882 Mbps; 688 Mbps | [3] |
| Mesh Support | EasyMesh; peer support and compatible firmware are required, and cross-vendor firmware conflicts can prevent connection | [3] |
| Ports | One 2.5 Gbps WAN port, one 2.5 Gbps LAN port and three 1 Gbps LAN ports; One USB 3.0 port for external storage sharing | [3] |
| Security Protocol | WPA3 supported; clients must support the corresponding feature | [3] |
| Software | Router and access-point modes; local web interface and Android/iOS Tether management; VPN server and client support for OpenVPN, PPTP, L2TP and WireGuard, subject to installed firmware | [3] |
| Subscription Required | HomeShield has basic and advanced features; advanced features require a paid subscription | [3] |
| WAN Speed | 2.5 Gbps | [3] |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be), with backward compatibility for a/b/g/n/ac/ax | [3] |
Retailer listing
Stated by reviewers
| Specification | Value | Source |
|---|---|---|
| Processor | Broadcom BCM6764 quad-core 2 GHz in PurePC's reviewed sample; exact US ASIN revision not established Polish review sample | [8] |
Measured by a lab
| Specification | Value | Source |
|---|---|---|
| Data Rate | 1070000000 bit/s PurePC test site; 1363360000 bit/s PurePC test site; 1477680000 bit/s PurePC test site; 2412000000 bit/s PurePC test site; 470400000 bit/s PurePC test site; 512320000 bit/s PurePC test site; 733360000 bit/s PurePC test site | [6], [5] |
| Power | 7.1 W PurePC test site | [5] |
Other facts
| Specification | Value | Source |
|---|---|---|
| Buyer Fit | PurePC's positive conclusion is centered on a modest apartment; its review does not establish universal whole-home coverage. Polish review | [10] |
| Risk | The TPLink CNA record for CVE-2026-0630, published in CISA's Vulnrichment repository, describes authenticated adjacent-network command injection in Archer BE230 v1.2 before firmware 1.2.4 Build 20251218 rel.70420. The CNA CVSS v4 vector requires high privileges. Applicability to this ASIN's unknown revision is unresolved. CNA names BE230 v1.2; market unspecified | [9] |
| Setup Requirement | Unbox's Philippine hands-on review describes straightforward setup after modem connection, using the default network details on the underside and Tether for configuration. Philippines review sample | [4] |
KnowSpec analysis
A practical fit for a modest home and one multi-gigabit wired device
The Archer BE230 makes sense when you want dual-band Wi-Fi 7, a multi-gigabit internet connection and one matching wired client in a modest home. Its strongest practical distinction is the combination of a 2.5 Gbps WAN port and a 2.5 Gbps LAN port. Choose something else if access to 6 GHz is essential, or if you need several multi-gigabit LAN devices without additional networking hardware. Before buying, confirm the unit's hardware revision and its applicable firmware: this ASIN does not identify a revision, and a published security advisory concerns a specific hardware revision and firmware range.
Method: Synthesis of the manufacturer specifications, independent transfer testing and revision-scoped CNA security evidenceRead the tests as conditional results
The independent results establish useful local transfer capability, but do not predict every home's speed. PurePC used a documented client and room layout; TP-Link's higher peak numbers came from a separate in-house EU-revision test. Keep those datasets separate. Neither establishes sustained heavy-load behavior for the unidentified US hardware revision, and the available multi-client evidence is incomplete.
Method: Manufacturer compatibility and service conditions, setup observation and CNA scopeStorage and VPN each have a separate bottleneck
The USB test shows a pronounced difference between reading and writing, so a headline interface specification is not enough to plan repeated backups. VPN capability is documented, but the measured protocol results retained here are TP-Link's own EU-revision observations. A buyer who needs predictable encrypted throughput should verify the same protocol, remote endpoint and applicable firmware before depending on it for a workload.
Method: Comparison of the stated test conditions and the accepted evidence gaps; no cross-test averagingCheck expansion, paid features and firmware before committing
EasyMesh provides an expansion path, but the exact peer and firmware combination still needs checking. HomeShield's advanced features add a subscription requirement, while local web and Tether management are documented. Firmware maintenance deserves attention independently of those services: the CNA security record is revision-specific, and no verified US security-support deadline was established for this ASIN.
Method: Independent USB measurements and explicitly attributed manufacturer VPN testingVisible information gaps
Missing information is shown rather than guessed.
- Softwarenot public
- Topic:Multi Client Capacitynot public
- Data Ratenot found
- Coverage Areanot found
- Warrantynot found
- Generationnot found
- Topic:Sustained Performancenot found
Products in this content
-
GL.iNet GL-MT300N-V2 Mango N300 Mini Travel Router
The Mango GL-MT300N-V2 suits travelers who value a pocket-size router, flexible uplinks and router-level VPN configuration more than broadband speed. Its single-band Wi-Fi and Fast Ethernet make it a conditio
-
GL.iNet GL-AR300M16 (Shadow) N300 Mini Travel Router
The GL-AR300M16 is a conditional choice for travellers who value a tiny, configurable network more than throughput. Its internal antennas and Micro-USB power connection keep the kit compact, while the single-
-
NETGEAR Nighthawk R6900P AC1900 Dual-Band WiFi Router
The R6900P is difficult to recommend as a new primary Internet router. NETGEAR marks it end-of-support and recommends retirement. Its remaining wired, wireless and local-storage functions can
-
TP-Link Archer AX6000 AX6000 Dual-Band Wi-Fi 6 Router
Consider the Archer AX6000 if you want a Wi-Fi 6 router with many wired connections and configurable household controls, provided you can verify the supplied revision and its current support.
-
NETGEAR Nighthawk AX12 RAX120 AX6000 Dual-Band WiFi 6 Router
Do not buy an unidentified RAX120 for a new security-dependent Internet connection on the strength of its AX6000 label. This ASIN maps to RAX120-100NAS but does not establish v1 or v2. NETGEA
-
TP-Link Archer AX21 AX1800 Dual-Band Wi-Fi 6 Router
The Archer AX21 is worth considering when replacing an old router with Wi-Fi 6, provided you do not need advanced parental controls or guaranteed coverage at a distance. Check the unit’s hardware revision bef
Sources and method
- TP-Link B0DC99N2T8 Archer BE230 supplier identity specificationsDevice.report · retrieved 2026-10-05Other source
- Archer BE230 Reviewer's Guide: manufacturer laboratory tests of EU 1.0TP-Link · retrieved 2026-10-05ManufacturerPDF
- Archer BE230 1.0 DatasheetTP-Link · retrieved 2026-10-05DatasheetPDF
- TP-Link Archer BE230 Review Philippines: WiFi 7 is HereUnbox.ph · retrieved 2026-10-05Editorial review
- Archer BE230 test, page 9: USB, WAN and powerPurePC · retrieved 2026-10-05Lab review
- Archer BE230 test, page 8: Wi-Fi 7 measurementsPurePC · retrieved 2026-10-05Lab review
- Archer BE230 test, page 4: test methodologyPurePC · retrieved 2026-10-05Lab review
- Archer BE230 test: specification and platform overviewPurePC · retrieved 2026-10-05Lab review
- CVE-2026-0630: TPLink CNA affected-version record published by CISACISA Vulnrichment; TPLink CNA record · retrieved 2026-10-05Other source
- Archer BE230 test, page 10: conclusionsPurePC · retrieved 2026-10-05Lab review
